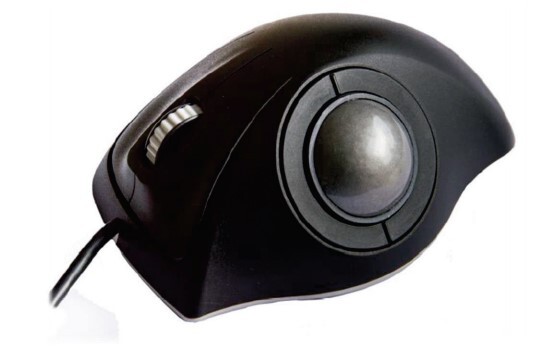

E38 Desktop Trackball
The E38 Series desktop trackball module is an extremely high specification device that incorporates the latest
Cursor Controls Ltd IP65 technology.
The module combines the patented optical trackball technology with the Cursor Controls Ltd hall-effect scroll
wheel to provide a fully waterproof desktop trackball solution.
To compliment these two technologies, the module also includes left, middle, and right switch functionality as
found in all conventional desktop trackballs/mice, making the E38 Series module a complete human interface
solution for control of a cursor.
In its standard configuration, the E38 Series is supplied with a black, fine-textured housing, aluminium base
plate, USB and PS/2 electrical output, and a grey scroll wheel. A variety of electrical outputs, ball tracking force
options, colours and backlighting features are also available - please contact your local sales office for further
details regarding these custom options.
The solid state design allows the device to be subjected to extreme conditions and provides the user with the
ability to wash down, decontaminate, and sterilise the module, making it the ideal trackball for a wide range of
demanding applications and environments.
The unit has been designed to be a freestanding desktop device and optimises desk space when compared to a
mouse
Features
▪ Environmental sealing to IP65
▪ Infra-red optical navigation technology
▪ Integrated IP65 hall-effect scroll wheel technology
▪ Integrated left, middle and right switch functionality
▪ 38mm ball for precise cursor control
▪ USB & PS/2 outputs (auto select)
▪ Wired USB cable providing high reliability and avoiding the need for batteries
▪ Smooth operation in rugged environments
▪ Various custom options available (please contact your local sales office for details)
Typical Applications
▪ Medical systems
▪ Custom keyboard applications
▪ Industrial consoles
▪ OEM custom solutions
